Hardware Installation Bondbox Step-by-Step

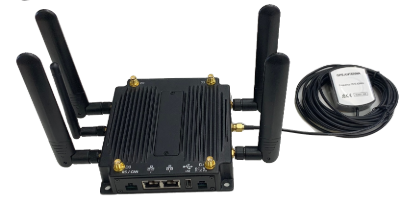

What's in the Box

Included in the BondBox kit is:
  • The Halo unit
  • Four Cellular Antennae
  • Wi-Fi Antenna
  • GPS Antenna
  • Power Adapter + Cable
 Verify you have all these, then continue.

Installing the SIM Cards

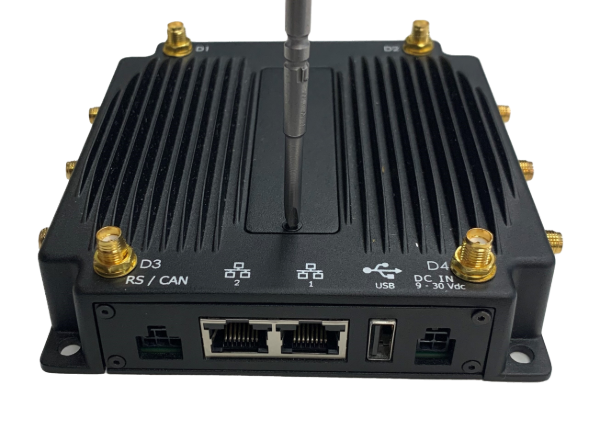

  1. Using a Phillips 1.5 Drive, unscrew the top plate on the Halo.

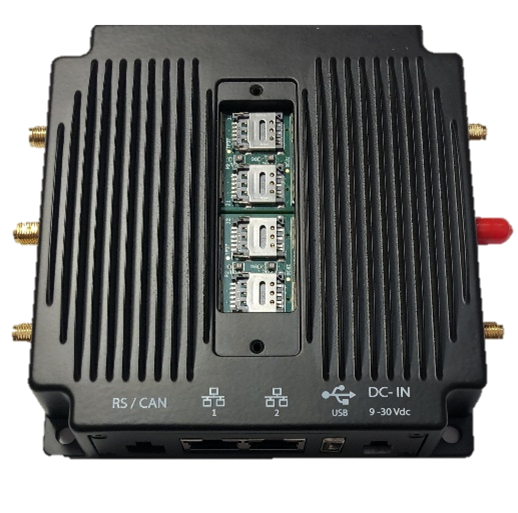

  2. Slide the SIM card holders to the left as pictured, then flip them open.
  3. Insert the SIM cards, close the holders, and re-install the top plate.

Connecting the Peripherals

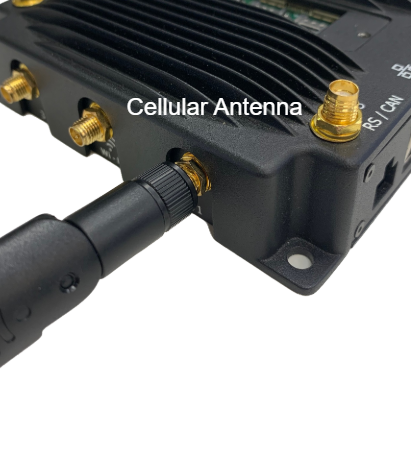

  1. Connect the Cellular antennae to Ports 1-4(as pictured)

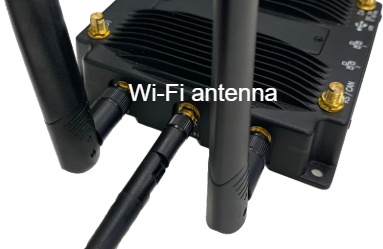

  2. Connect the Wi-Fi antenna to the Wi-Fi port

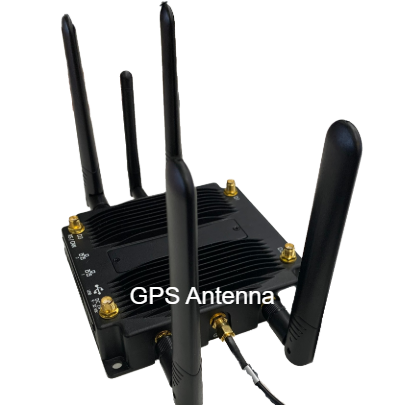

  3. Connect the GPS antenna to the GPS port

Finishing Up

  1. Connect the ethernet cable to Port 1 and the other side to your computer
  2. Connect the power cable to DC IN and to a powerpoint

Now the BondBox is physically installed.
